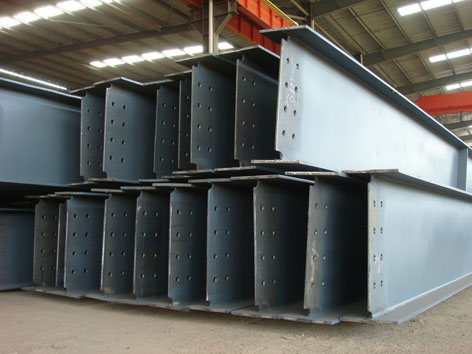

Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and throughput (tons-per-month) in today’s extremely competitive market.

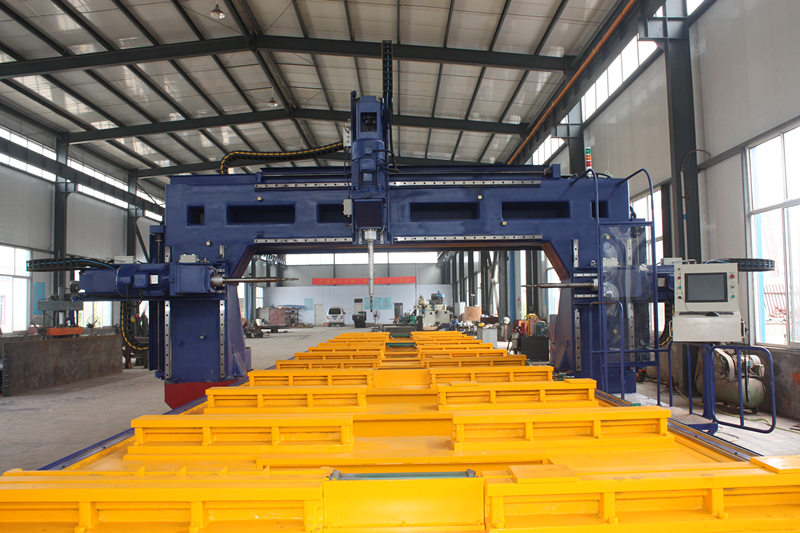

Gantry-Type CNC H Beam Drilling Machine Line Specialized for large section beams Steel Structure Industry
INTRODUCTION
BD2010 which was designed for large-section beam fabricators desiring to increase profitability and throughput (tons-per-month) in today’s extremely competitive market. BD2010 eliminates time-consuming manual beam layout and hole drilling, formerly done by mag drills and/or hydraulic punches.

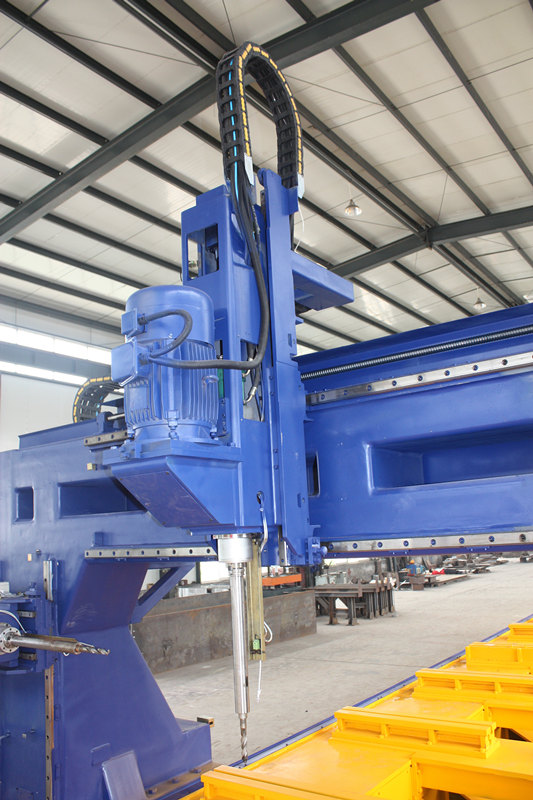

BD2010 is equipped with 3 self-supported high-speed Y-Z-axis moving drilling spindles. All spindles are built on the gantry and moving along with it. The spindle can provide high efficient drilling capacity with wide range of hole diameters. All these 3 drilling units can work simultaneously on the web and flanges of the beam. The Beam is fixed on the worktable, and the gantry will finish the CNC moving automatically to find the right position for drilling.
BD2010 can be multi-used for drilling H-Beam, Box-Beam, Column-Beam and Channel. The high speed drilling spindle and high speed position servo system will enable the machine to finish job efficiently.
MACHINE MAIN CHARACTER
Reduced setup time & simple to operate;
Sturdy frame, no vibrations and noiseless;
Circle-Controlled system to measure accurately;
High-speed drilling with inner cooling;
Specialized for large-section beam drilling.
Layout marking function easy for welding.
Autocad, X-STEEL & Tekla file reading instead of manual input.
SPECIFICATIONS:
Operating Range
H-Beam | 1000 x 400 mm ~ 2000 x 1000 mm |
Channel | 1000 x 400 mm ~ 2000 x 1000 mm |
Box-Beam & Column Beam | 1000 x 400 mm ~ 2000 x 1000 mm |
Max. Length of Workpiece | 12,000 mm |
Max. Loading Capacity | 3 tons/m, total 35 Tons/whole worktable |
Drilling Unit
No. of Drilling Spindle | 3 (Left + Right + Top) |
Drilling Diameter | Φ12.5 ~ Φ50 mm |
Thread Tapping | 4# |
Motor Power of Drilling Spindle | 5.5 kW x 3 |
Spindle Feeding Stoke | Y1 axis: 1000mm; A axis: 600mm (horizontal) Y2 axis: 1000mm; B axis: 600mm (horizontal) Z axis: 2000mm; C axis: 600mm (vertical) |
Spindle Y & Z movement | Yes |
Feed | CNC feeding; 0 ~10 m/min (vertical to H-beam) |
Drilling Tools & Tool Lube Model | Coated Drill Bit with mist spray cooling Or Carbide Drill Bit with inner cooling |
Spindle rpm (servo) | Stepless120~560 rpm |
Profile Height Measuring | Included |
Profile Width Measuring | Included |
Layout Point Marking (not drilling through) | Available (for welding purpose) |
Gantry System
Moving Speed | 0 ~ 10m/min |
Drive Model | Double side servo + Gear |
Structure | Square Pipe + Plate; HF welded |

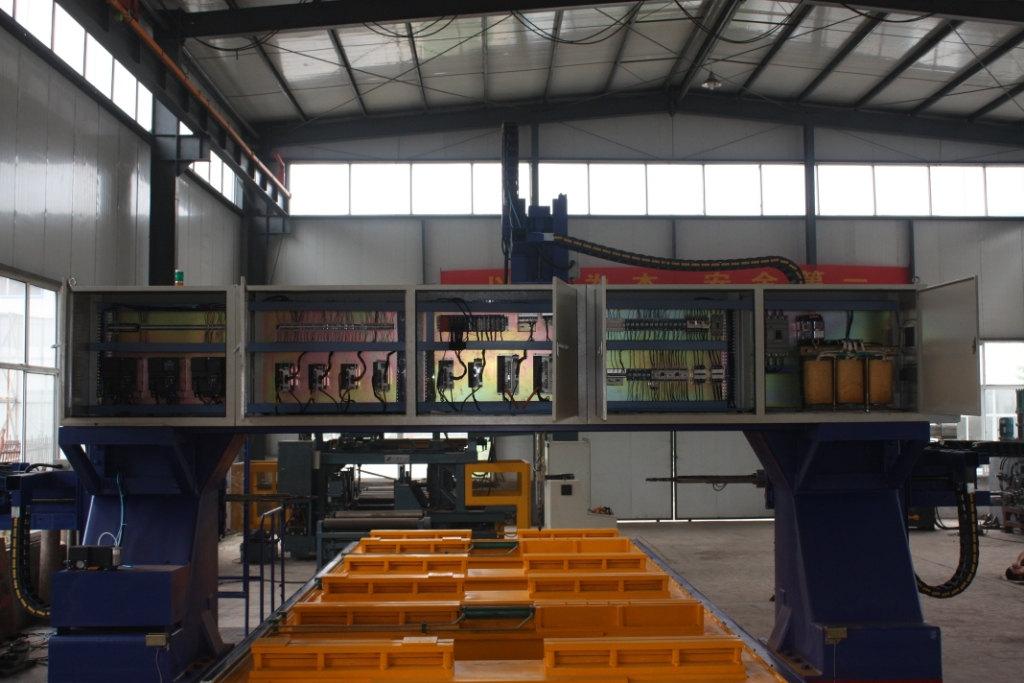

Control System
Type | Computer + Mitsubishi PLC + Modules |
Importing Software | AUTOCAD (*.dxf), TEKLA, X-STEEL (*.nc1, dstv) |
Manual Programming | Available |

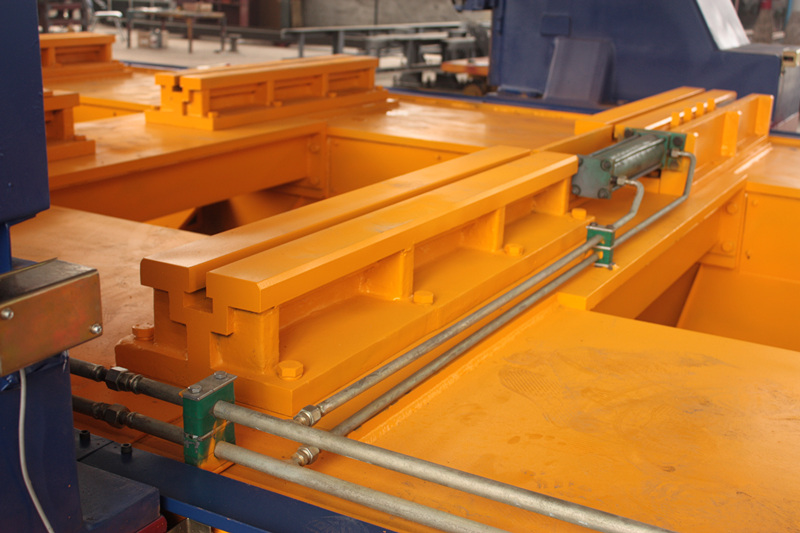

Hydraulic System (for tool changing & side push aligning)
Hydraulic Motor Power | 5.5 kW |
System Inner Working Pressure | 75 bar |
Flux | 40 L/min. |
Hydraulic Tank Content | 140 L |
Hydraulic oil N0. | #46 |
Scraps Removal System
Motor Power | 1.5 kW |
Type | Chain & Plate recycling moving type |
Speed | 10/min |
No. of scraps removal system | 2sets |
Machine overall info
Dimension (L x W x H) | L 17000mm x W 8600mm x H 4620mm |
Total Weight | Around 50 Tons |
Total Power | 40 kW |
