2019-10-10
Three-in-one Machine CNC Punching, Marking and Cutting Line for Angle Steel, Flat Steel and Channel Steel
Three-in-one Machine for punching angle steel, flat steel and channel steel. New design and new function.

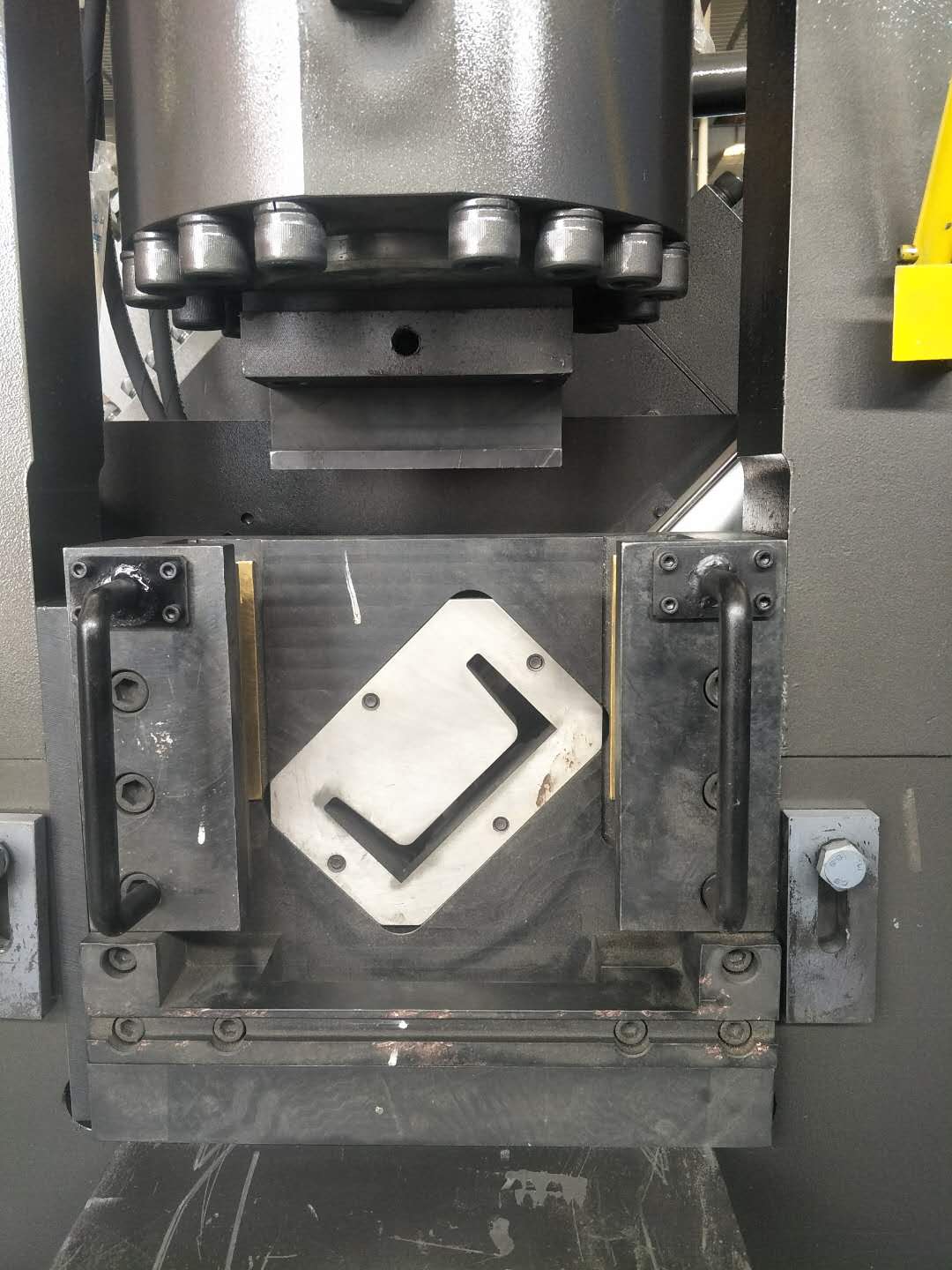

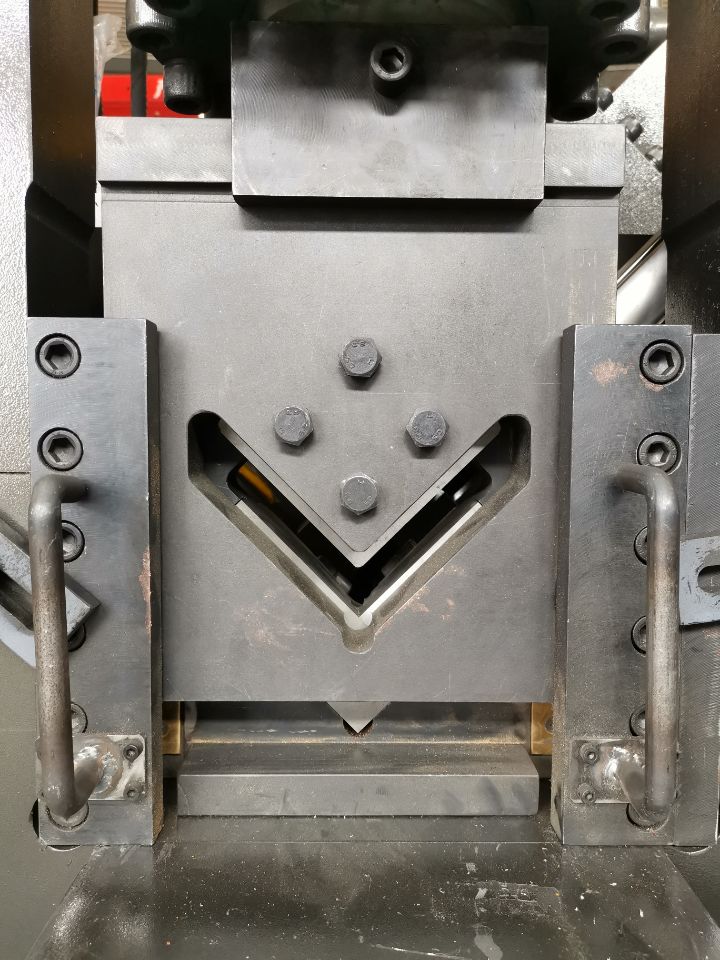

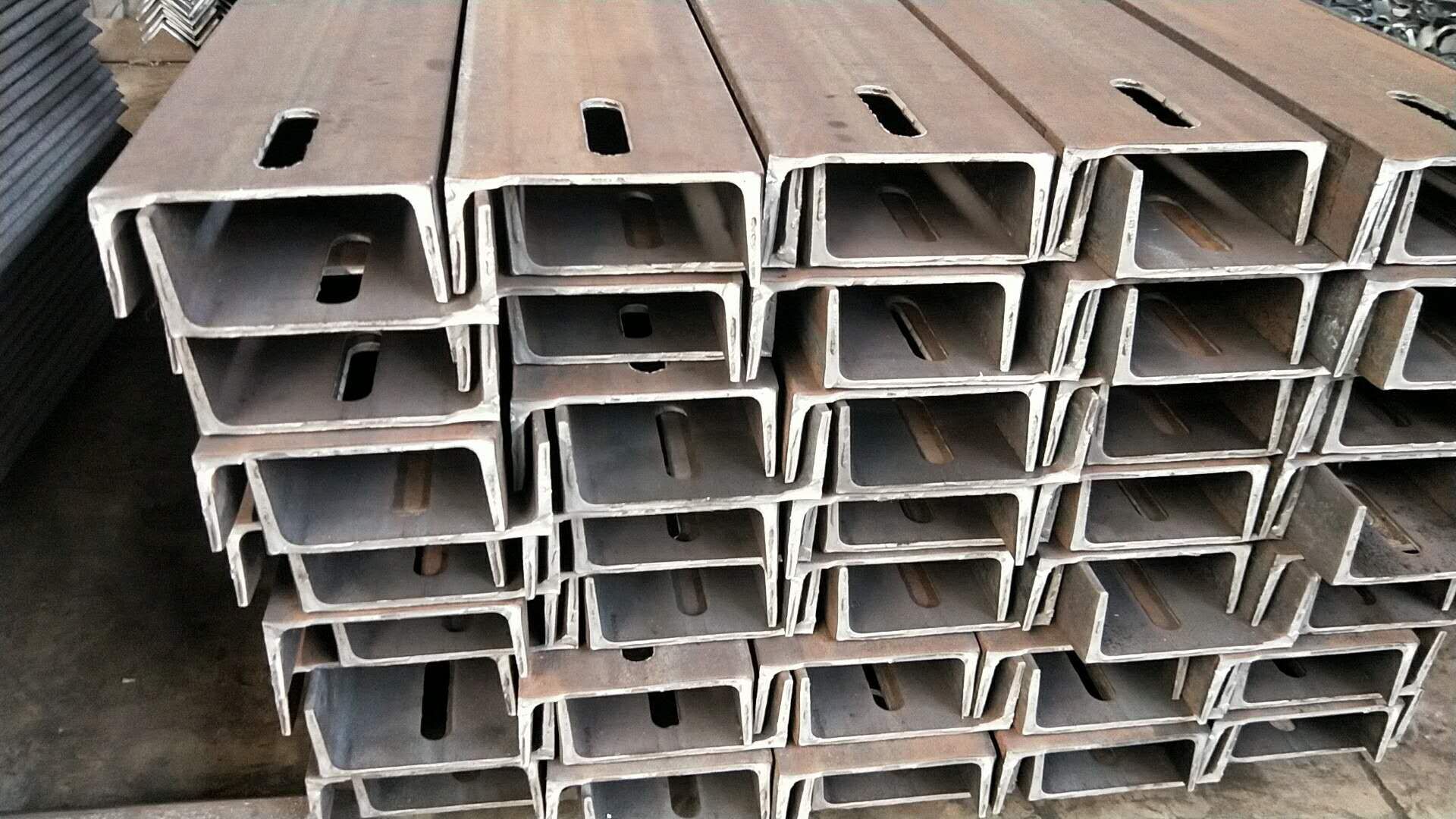

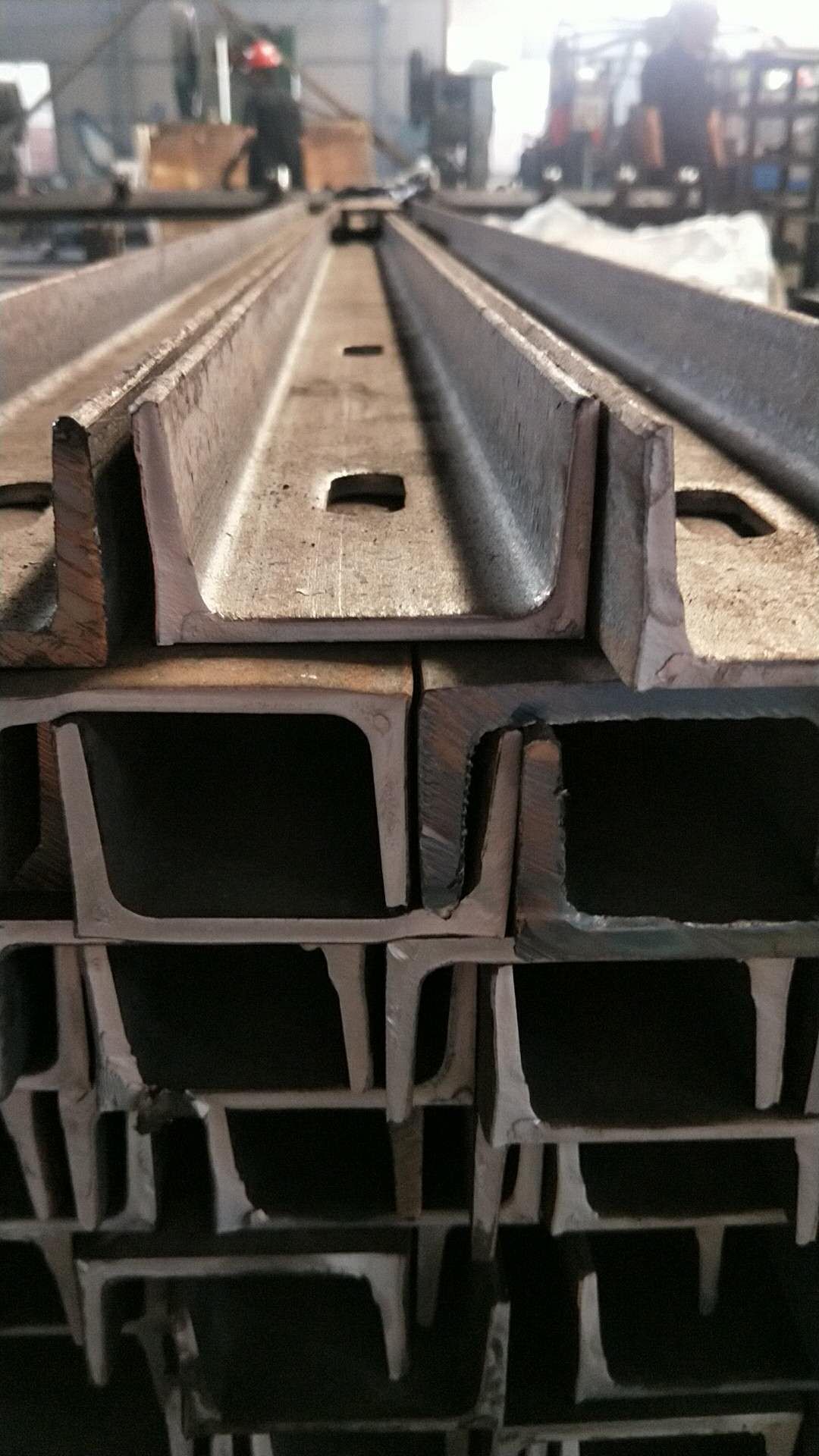

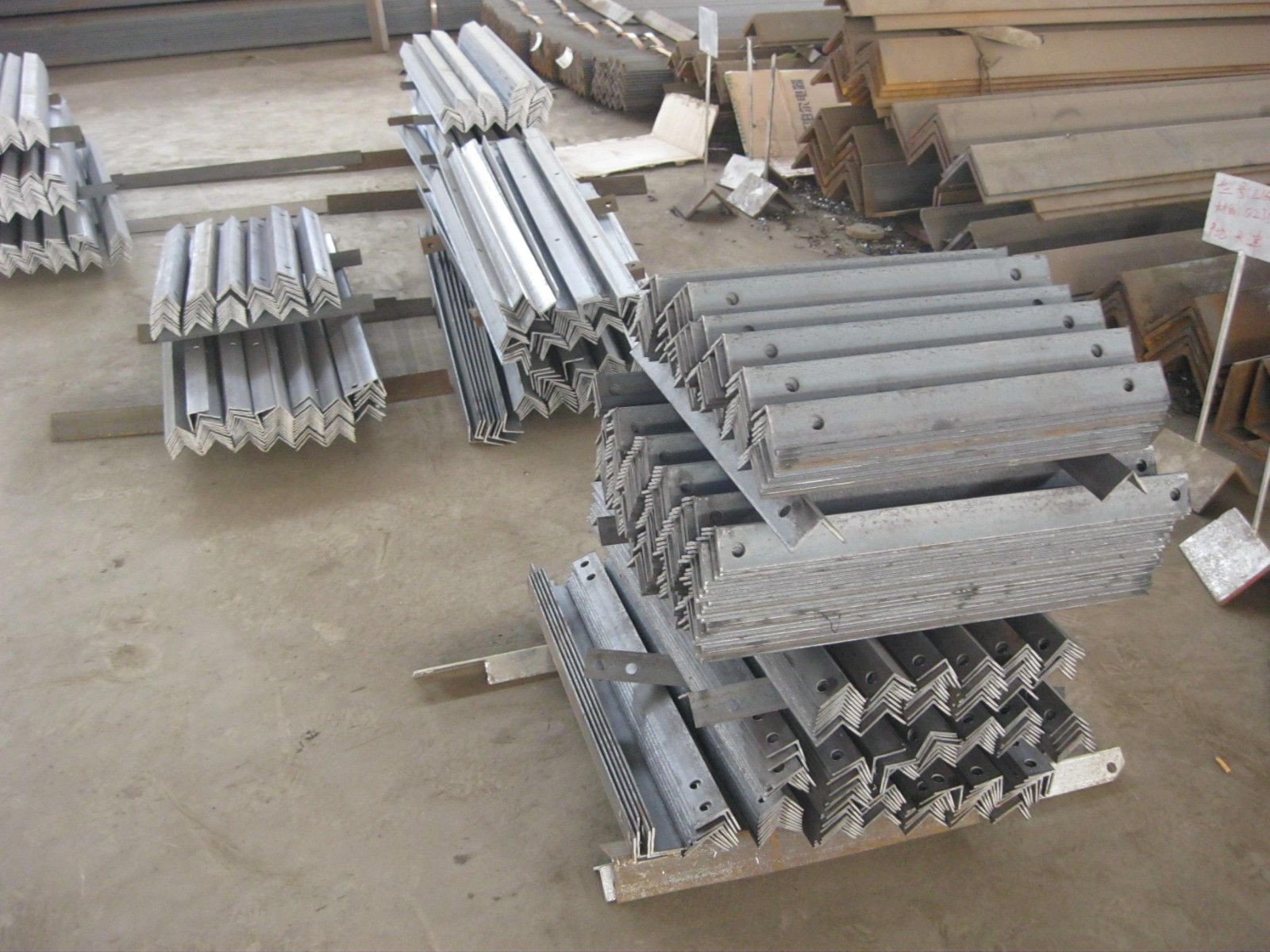

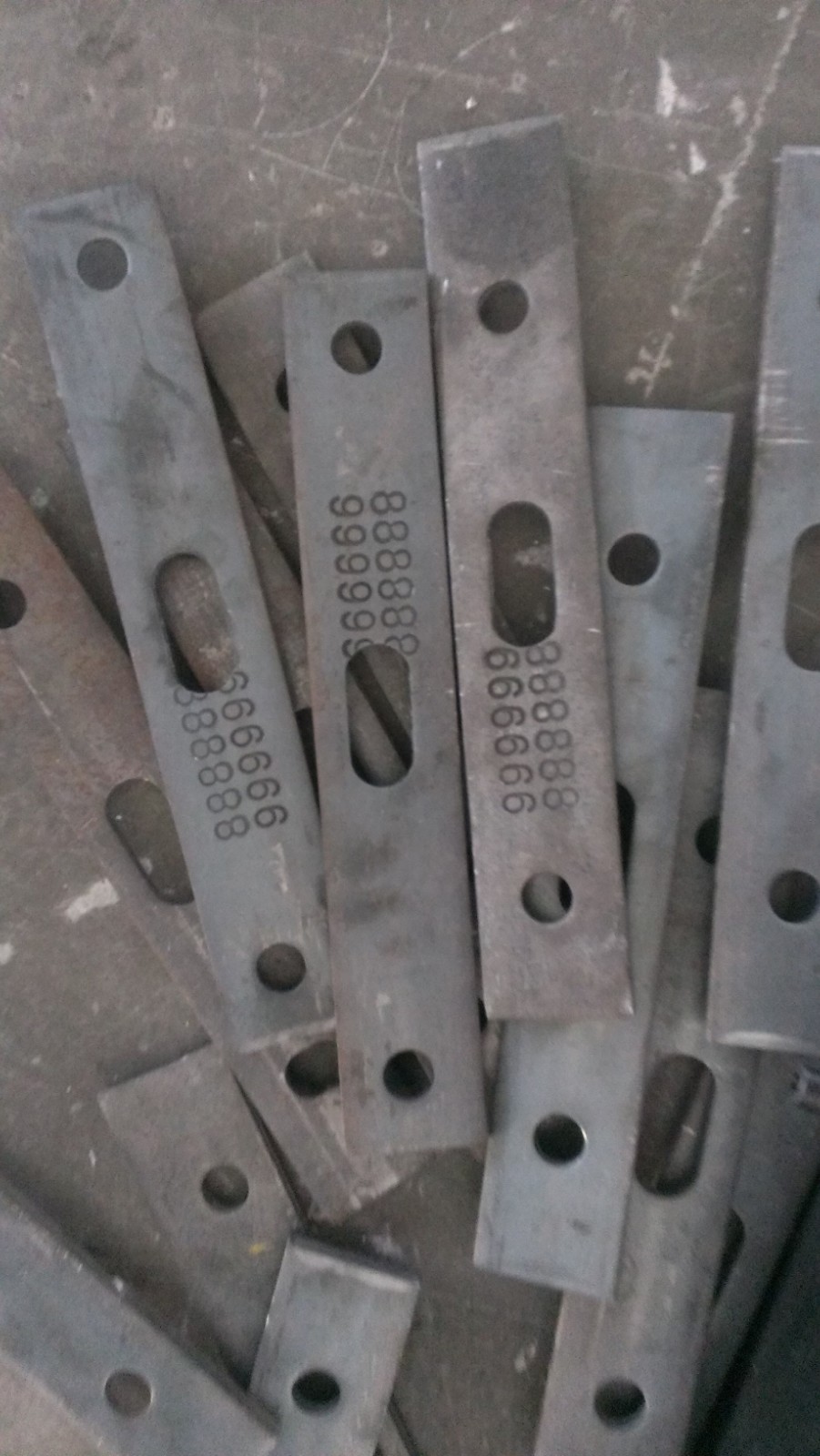

pplicable Industry:It is used for punching, marking and shearing on angle steel, flat steel and channel steel. It is mainly used for processing cross-arms, hoops, five-hole connecting plates, flat pads, and benches in electric power tower iron accessories. The machine can be used for punching, shearing and typing in one step without separate processing. High processing precision, high production efficiency, and can be processed by one person, simple and easy to learn.
Specifications:
Model | JBC1010 |
Functions | Punching, marking, shearing |
Angle size (mm) | 40х40х3～100х100х8 (slotted hole) 40х40х3～100х100х10 (round hole)
|
Flat steel size (mm) | 40x3~140x10 |
Channel steel (mm) | 80x5~140x8 |
Max. hole diameter (mm) | Φ22х50 (slotted hole), Φ26 (round hole) |
Punching force (kN) | 800 |
Marking force (kN) | 630 |
Cutting force (kN) | 1250 |
Max. length of blank (m) | 9 |
Max. length of finished (m) | 9 |
Punches per side | 3 |
Group of Marking letters | 4 |
Dimension of letter (mm) | 14×10×19 |
CNC axes | 3 |
Cutting mode | Single blade cutting |
Feeding speed of angle (m/min) | 80 |
Processing precision | Accordance with GB2694 |
Program function | Real time fault display |
Programming mode | Input by keyboard, RS232 interface, floppy disk and USB interface |
Gross Weight (kg) | 12500 |
