Multifunction CNC Plate Punching, Marking and Drilling Machine for Metal Plates
Applicable industry：
Used for punching, marking and drilling of steel plates in the field of steel tower and Steel Structure. It is also used to punch, drill and mark of metal plates of other industries.
Specifications:
Model | BNC100 | BNCZ100 | ||
Max size of work piece L×W(mm) | 1500×800 | |||
Max. punching diameter (mm) | Φ26 | |||
Max. drilling diameter (mm) | / | Φ50 | ||
Plate thickness (mm) | Punching | 5～25 (Q235) | ||
Drilling | 40 | |||
Punching force (kN) | 1000 | |||
Marking force (kN) | 800 | |||
Min. distance between hole and plate edge (mm) | Punching | 25 | ||
Drilling | Depends on hole diameter | |||
Character size(mm) | 14×10×19 | |||
No. of character | 12 | |||
Die-stations | 3 | 4 | ||
Feeding speed of drilling(mm/min) | / | 25~280 | ||
Stroke of drilling spindle(mm) | / | 180 | ||
Rotation speed of drilling spindle(r/min) | / | 120~560 | ||
Precision | Accordance with GB2694 | |||
Programming mode | Input by keyboard, RS232 interface and USB interface | |||
Overall dimensions L×W×H (mm) | 3200×3000×1900 | 3200×3000×2600 | ||
Machine weight (kg) | About 5400 | About 5800 | ||

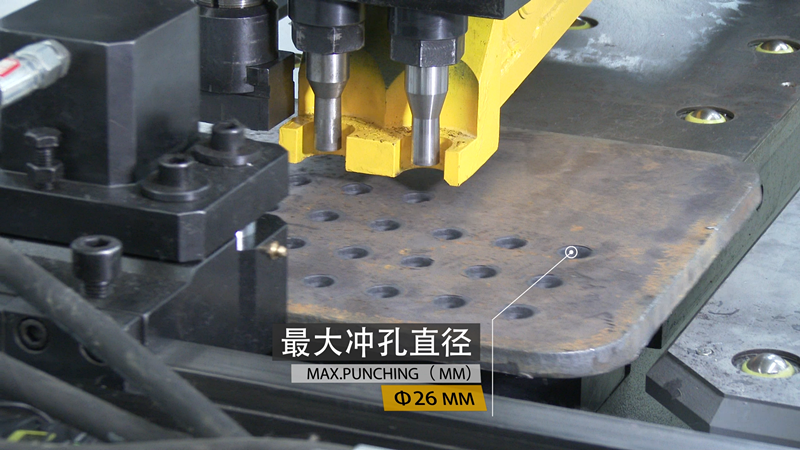

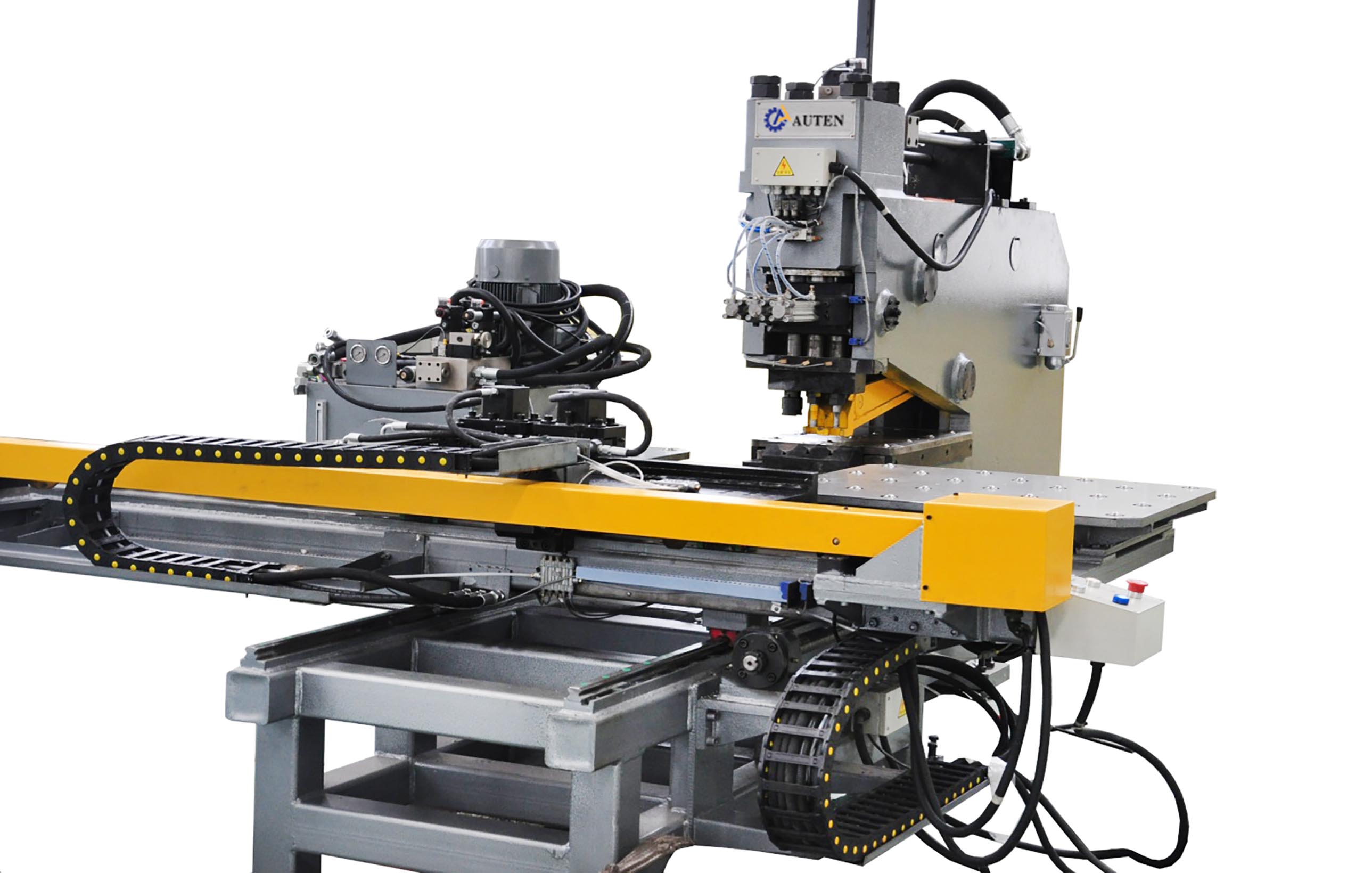

cnc plate punching machine
cnc plate drilling machine
punching unit of cnc plate punching machine

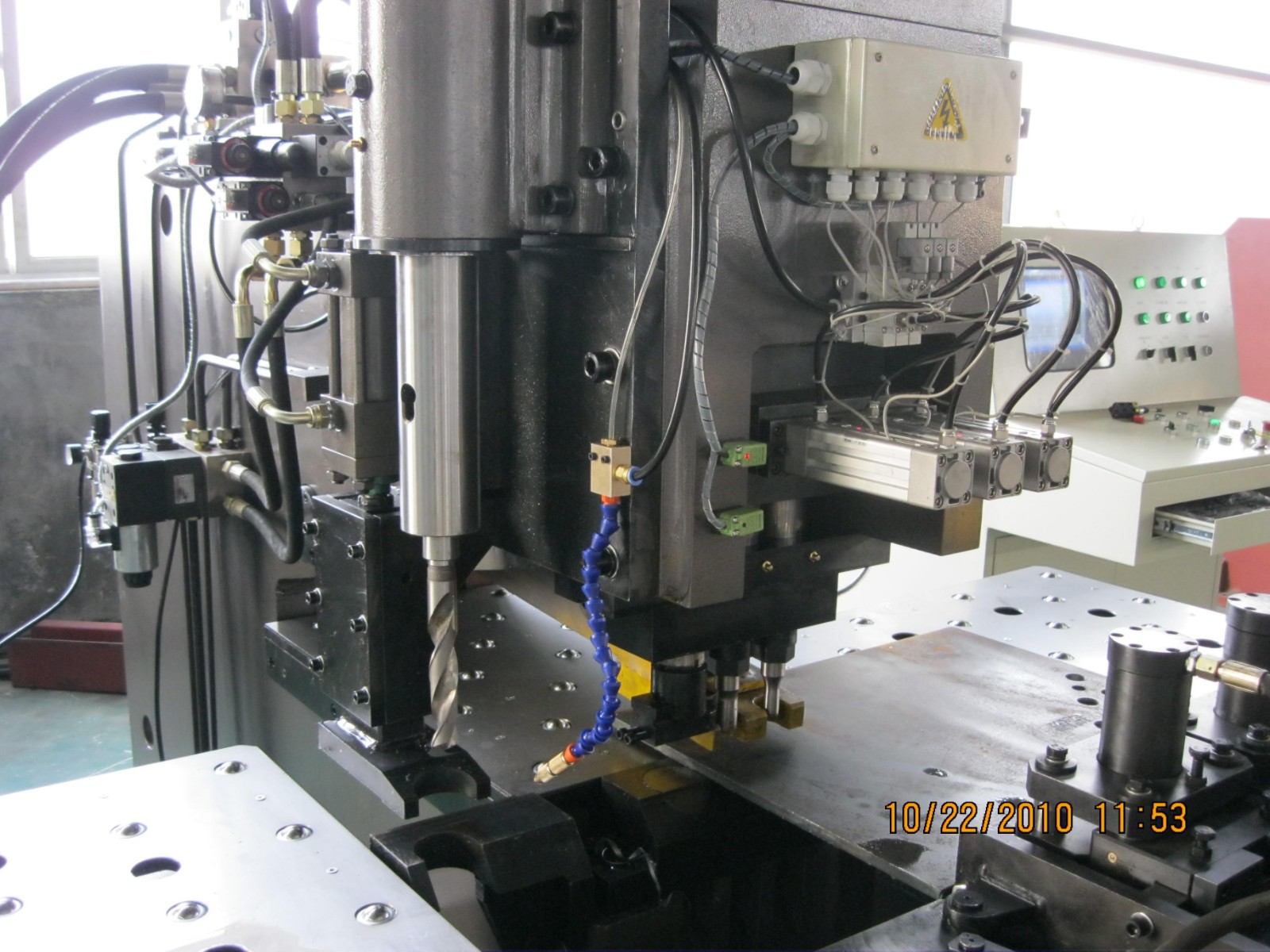

drilling unit of cnc plate punching and drilling machine

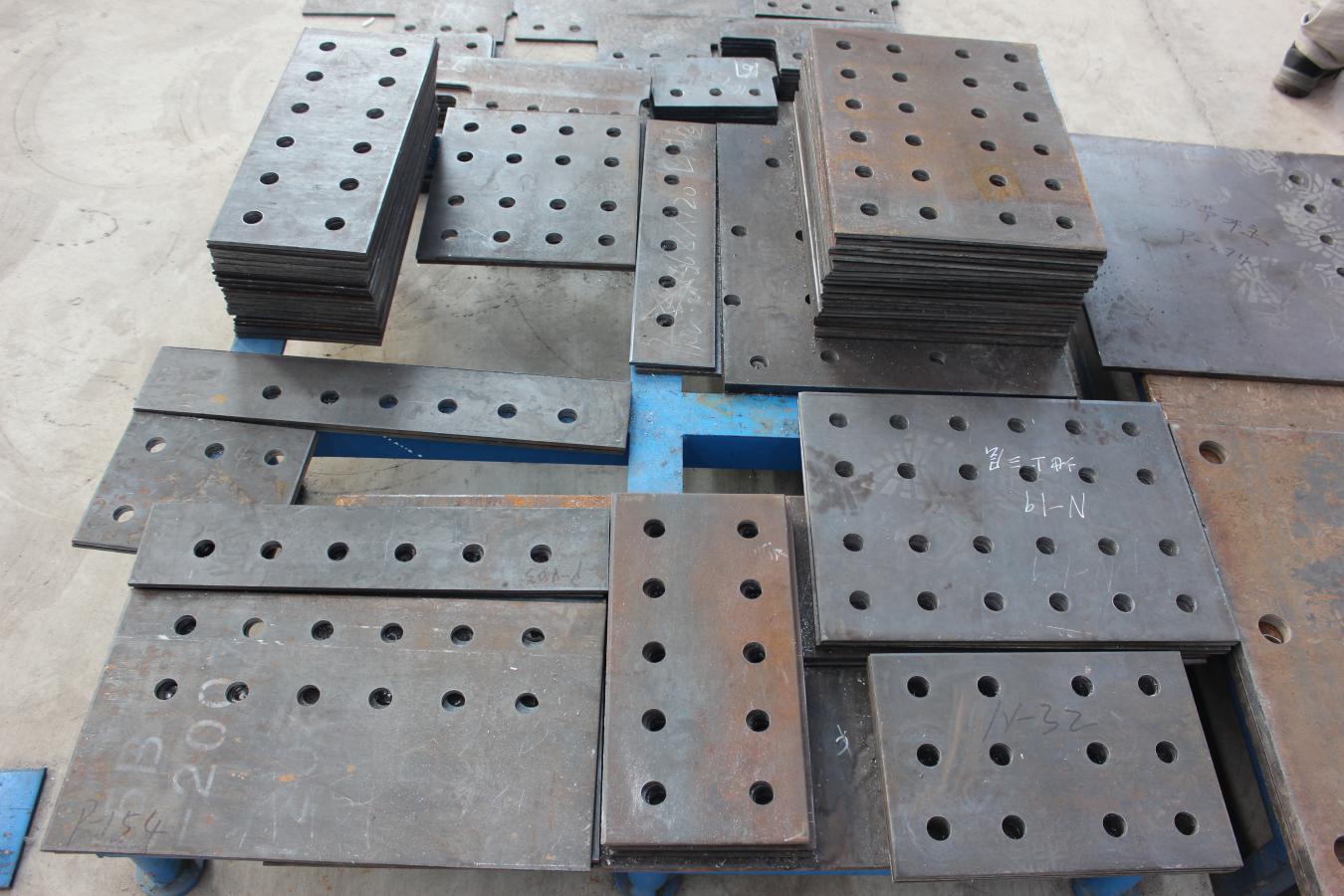

workpiece of cnc plate drilling machine

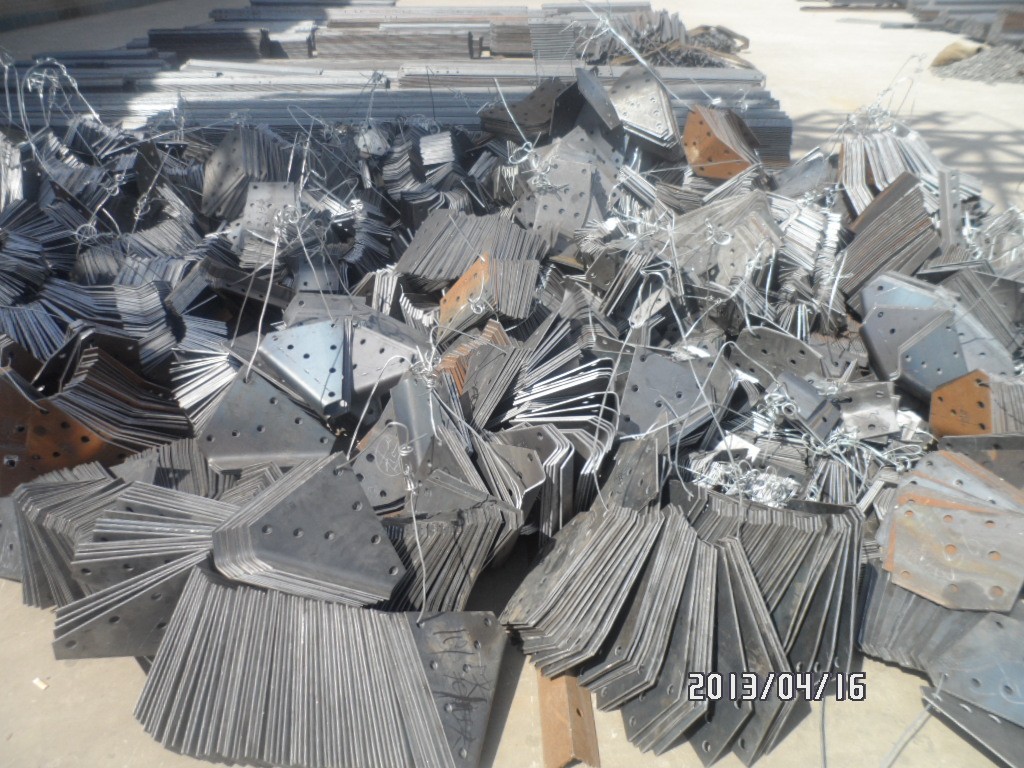

workpiece of cnc plate punching machine
