2019-10-09
High Speed CNC Plate Drilling and Milling Machine for Metal Plates, Flange and Tube Sheet
Specifications:
Model | PZG2016 | PZG3016 | PZG4016 |
Max work piece size (L×W) | 2000X1600mm plate or Φ1600mm flange | 3000X1600mm plate or Φ1600mm flange | 4000X1600mm plate or Φ1600mm flange |
Max. thickness of work piece | 15~100mm (hydraulic clamp), 120mm (T-slot) | ||
Clamping type | Hydraulic clamp, T-slot | ||
Drill unit type | sliding table, servo control | ||
Drill head quantity | 1 | ||
Max drill diameter | Ф40/Ф50mm | ||
Taper hole of spindle | BT40/BT50 | ||
Spindle motor power | 18.5/22 kW | ||
Spindle speed | 30～3000r/min | ||
Servo motor power of X axis | 1.5 kW | ||
Servo motor power of Y axis | 1. 5 kW | ||
Servo motor power of Z axis | 3 kW | ||
CNC system | SIMENS 808D | ||
CNC axis quantity | 3 | ||
Position precision | ≤±0.08mm | ||
Repeated position precision | ≤±0.04mm | ||
Overall size | About 4.5x3.9x3.2m | About 5.5x3.9x3.2m | About 6.5x3.9x3.2m |
Weight | About 11 tons | About 12 tons | About 13.5 tons |

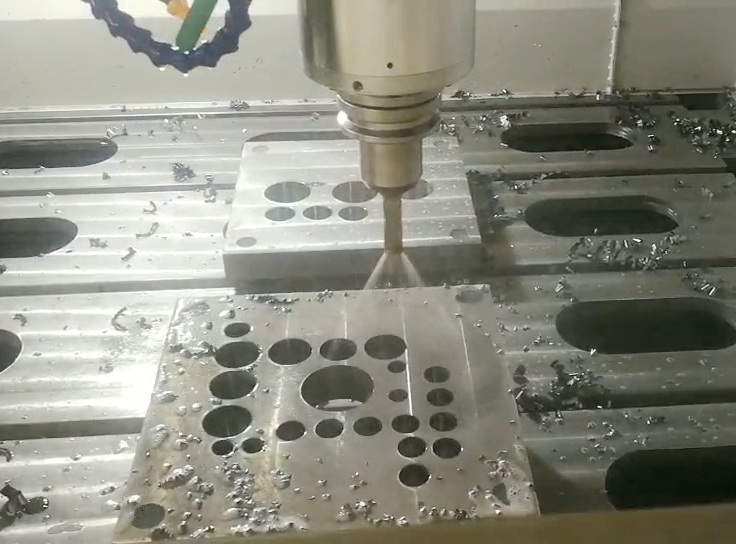

CNC Plate Milling

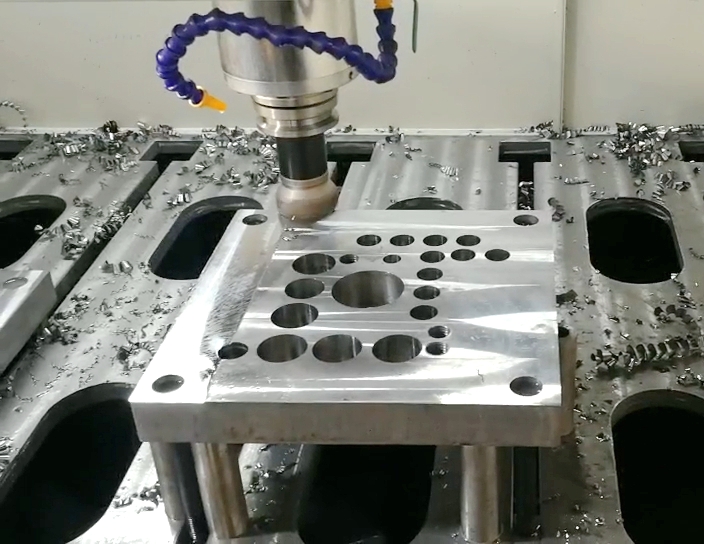

cnc plate drilling inner cooling
![502cefecd07908b92f27[00_00_02][20190620-182406].png](/upload/image/20191009/6370618405951006979005581.png "502cefecd07908b92f27[00_00_02][20190620-182406].png")
cnc plate drilling and tapping

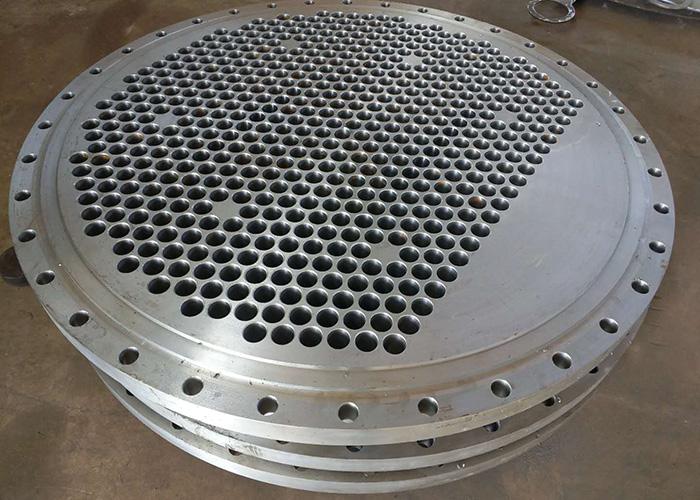

workpiece of cnc flange drilling machine

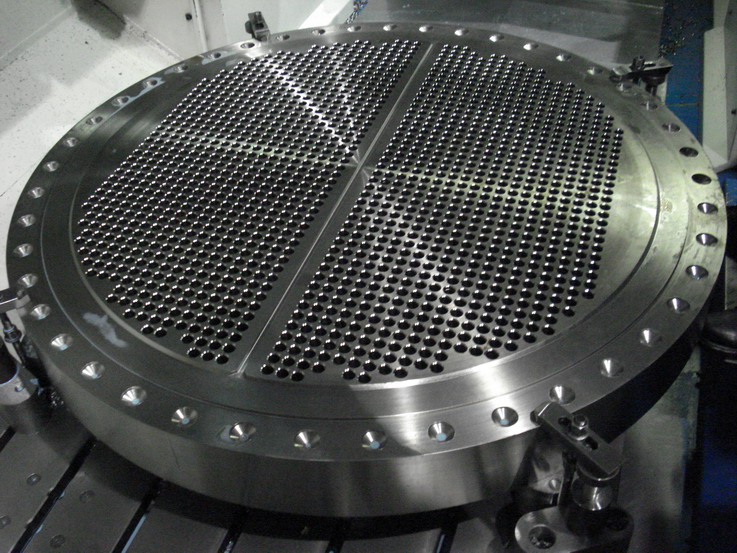

workpiece of cnc tube sheet drilling machine

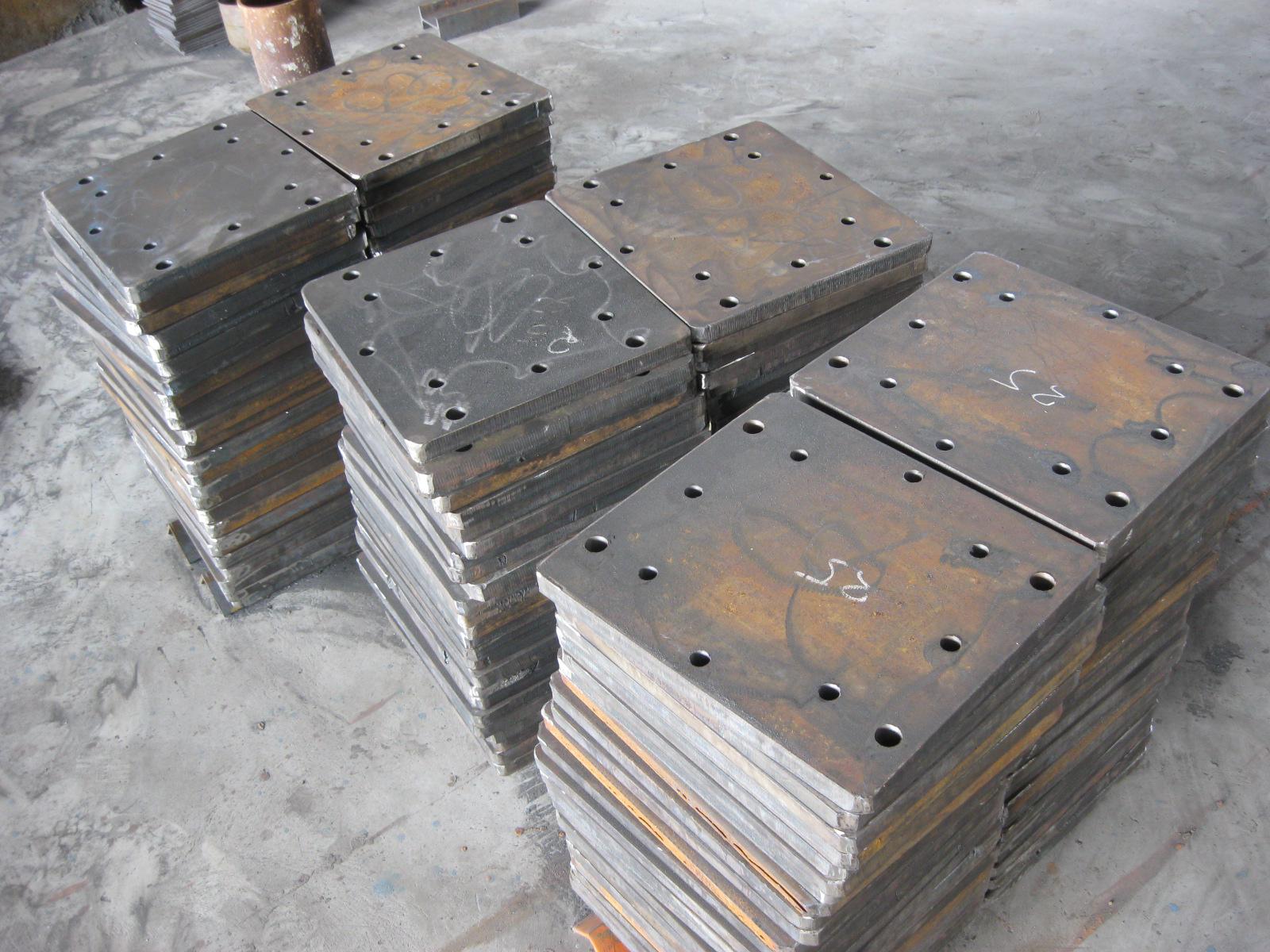

workpiece of cnc plate drilling machine
