LEARN MOREHigh Speed CNC Angle Machine Line of Punching, Marking and Cutting for Angle Steel Tower Industry
2019-10-09

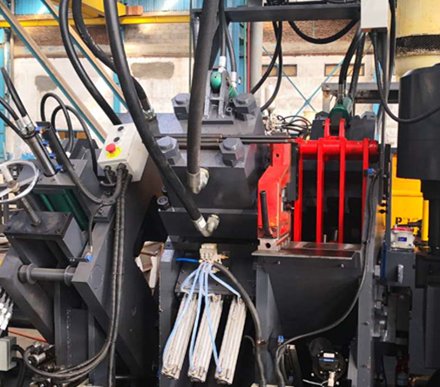

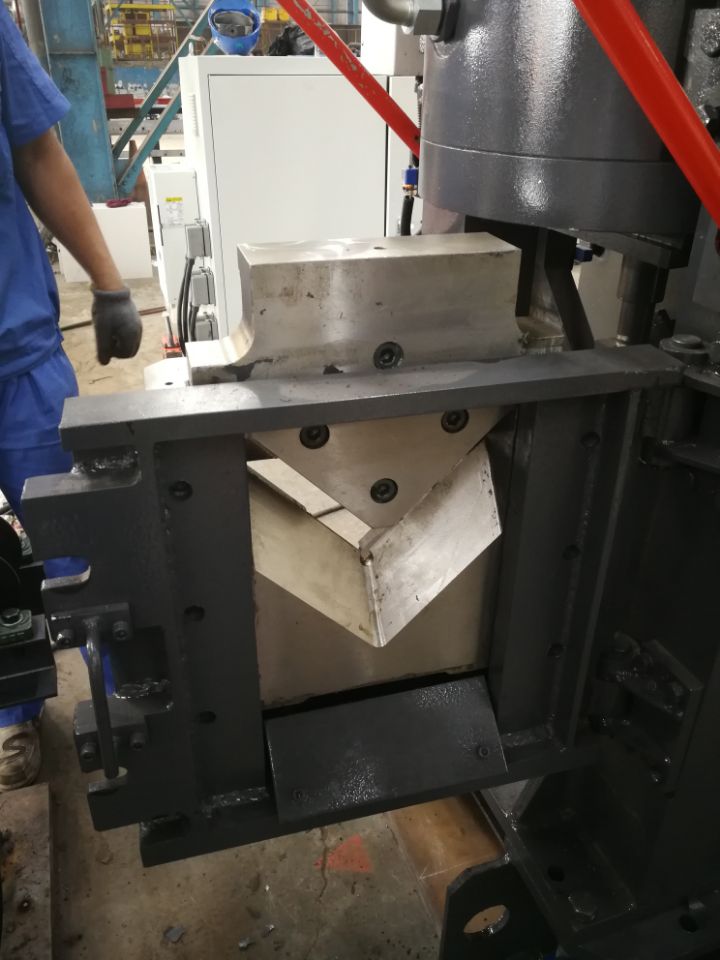

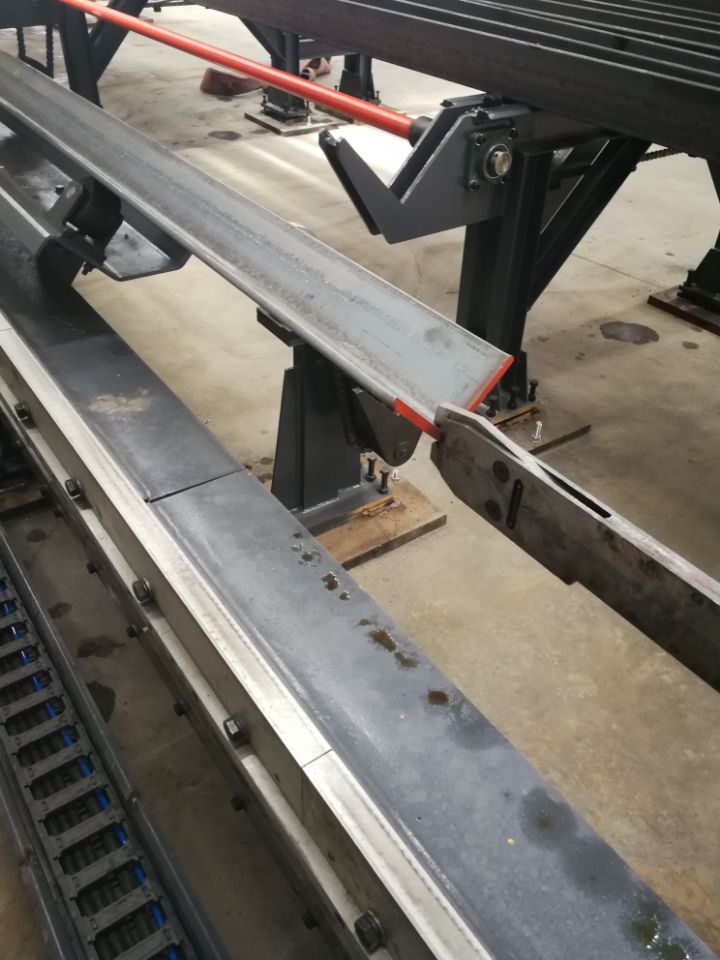

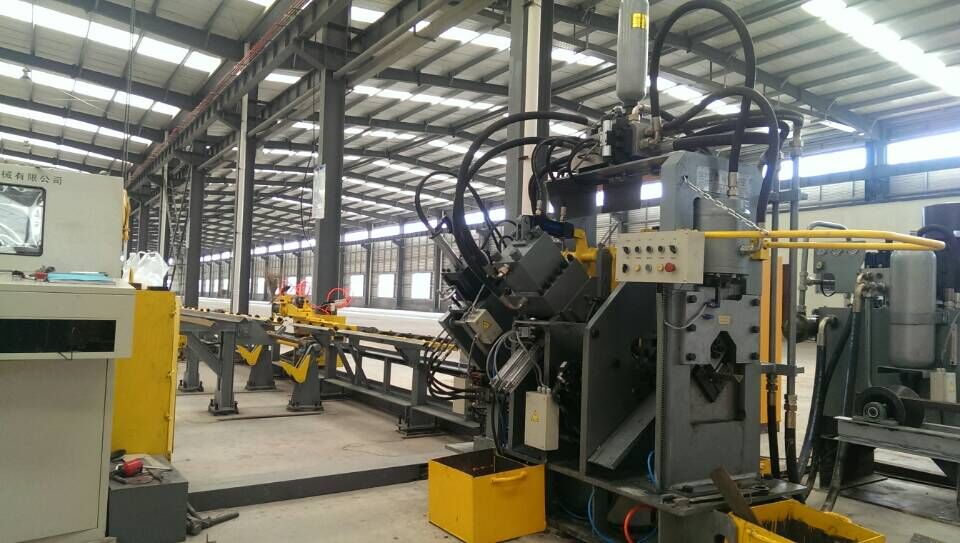

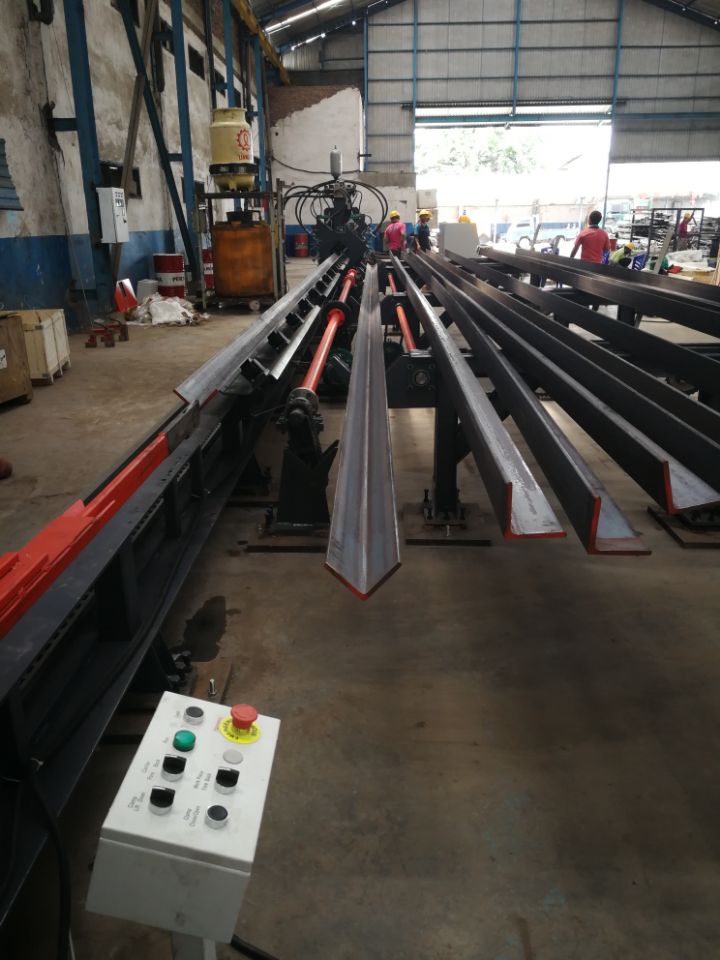

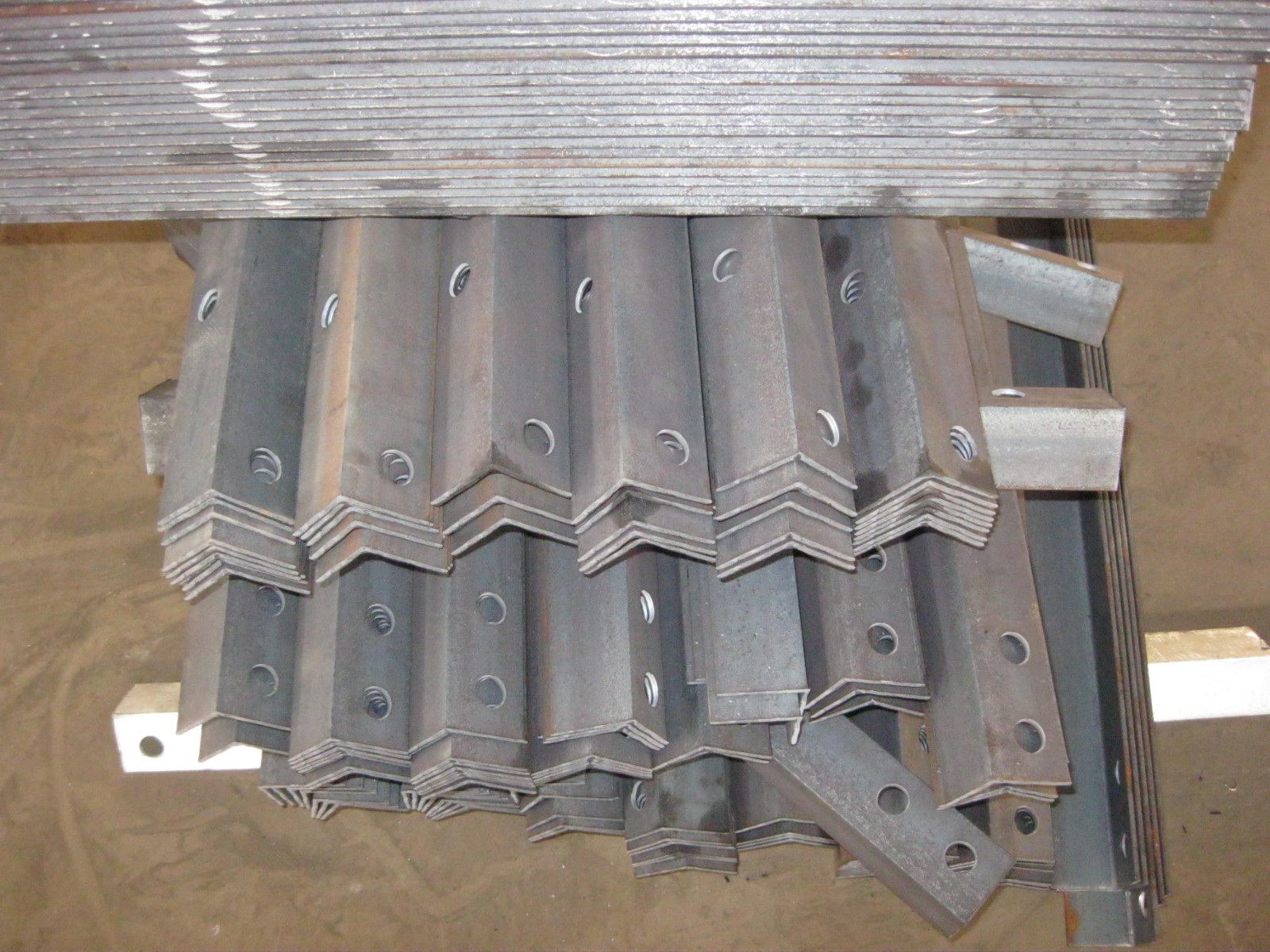

High Speed CNC Angle Machine Line of Punching, Marking and Cutting for Angle Steel Tower Industry
Specifications:
Model | JNC1010 | JNC1412 | JNC2020 |
Angle size (mm) | 40х40х3~ | 40х40х3~ | 50х50х4~ |
Max. Punching (Dia. х Thi.) (mm) | Φ26х10 | Φ26х12 | Φ26х20 |
Punching force (kN) | 630 | 630/1000 | 1000/1200 |
Marking force (kN) | 630 | 630/900/1200 | |
Cutting force (kN) | 1000 | 900/1800 | 1540/4300 |
Max. length of blank (m) | 12 | 12 | 14 |
Max.length of finished (m) | 10 | 12 | 14 |
Punches per side | 2 | 2 or 3 | 3 |
Group of marking letters | 4 | 4 | 4 |
Number of letters per group | 12 | ||
Character size(mm) | 14x10x19 | ||
CNC axes | 3 | ||
Cutting mode | Single Blade | Double Blade or Single Blade | |
Feeding speed of angle(m/min) | 80 | 80 | 60 |
Processing precision | Accordance with GB2694 | ||
Programming mode | Input by keyboard,USB interface | ||
Overall dimension (m) | About 28x6.5x2.2 | About 29x6.5x2.2 | About 32x7x2.35 |
