CNC Angle Punching, Marking and Shearing Machine
CNC Angle Processing Machine
Angle size: 40x40x3~200x200x20mm
Max. Hole size: 26mm
High Speed CNC Plate Drilling Machine
It is mainly used in steel structure drilling in construction, bridge, tower etc., and can be use din pipe and plate of boiler, petro line, baffle plate and round flange.
LEARN MORE
High Speed CNC Angle Drilling and Marking Machine Line
Used for angle steel drilling & marking mainly in the field of angle steel tower industry.
LEARN MORE
CNC H Beam Drilling Machine Line
Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and throughput (tons-per-month) in today’s extremely competitive market.
LEARN MORE
CNC Plate Punching, Marking and Drilling Machine
Used for punching, drilling and marking joint plates in the field of iron tower. It is also used to punching, drilling and marking metal plate in other industry field.

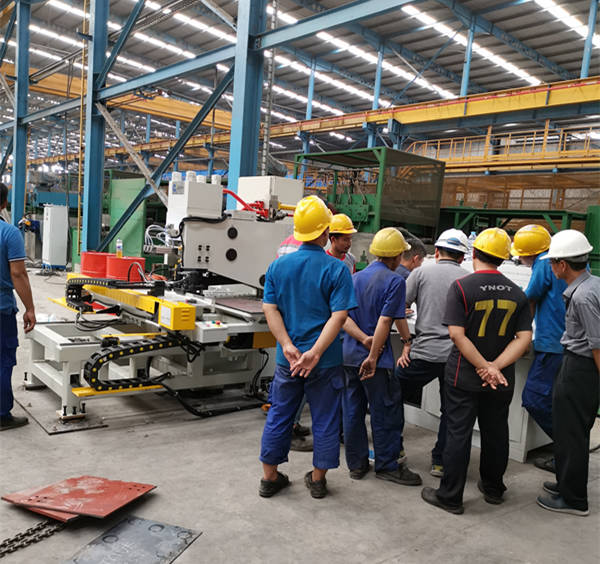

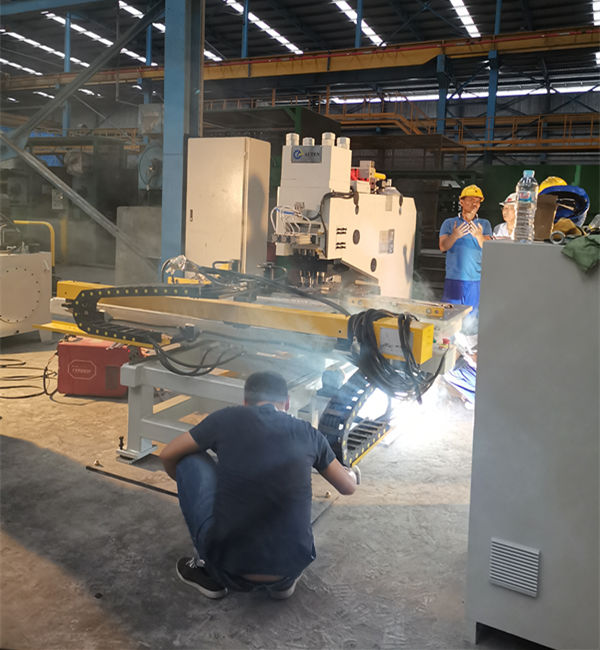

LEARN MORECNC Plate Drilling Machine - Installation and Training CNC Plate Punching Machine in Customer Factory
2020-01-04

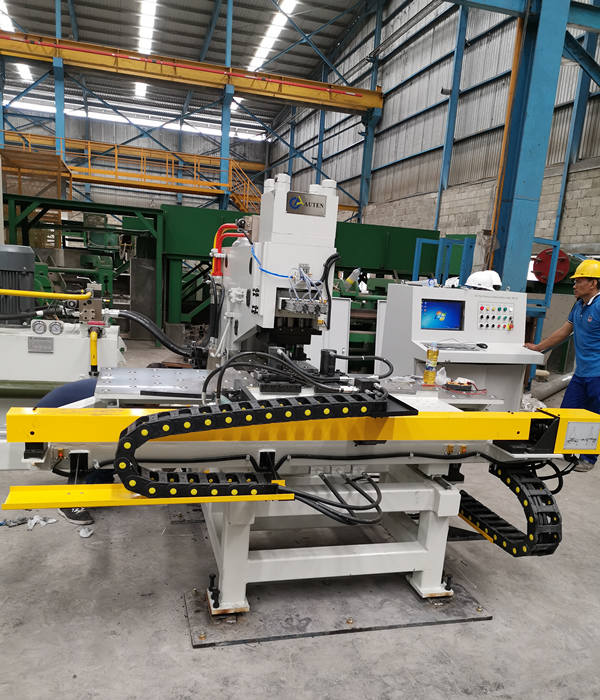

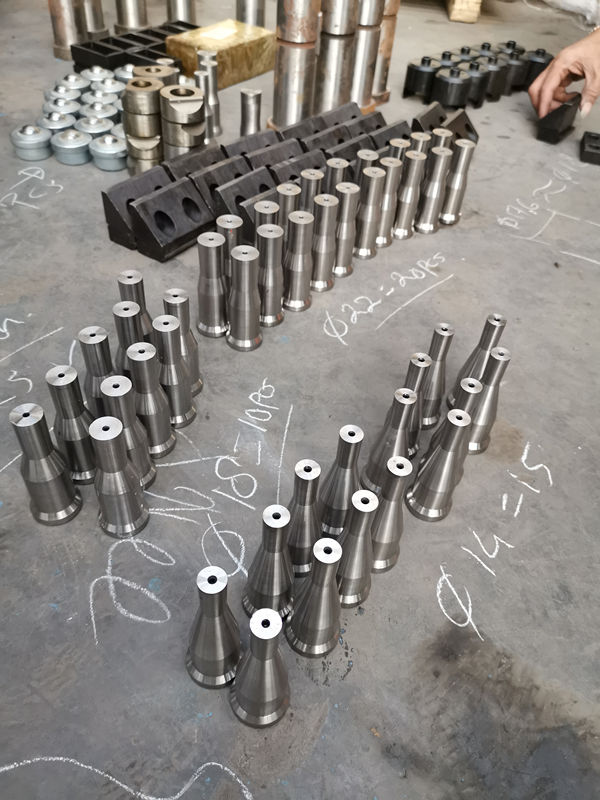

CNC Plate Punching, Marking and Drilling Machine ModelBNC100/BNCZ100
Applicable industry：
Used for punching, marking and drilling of steel plates in the field of steel tower. It is also used to punch, drill and mark of metal plates of other industries.
Specifications:
Model | BNC100 | BNCZ100 | ||
Max size of work piece L×W(mm) | 1500×800 | |||
Max. punching diameter (mm) | Φ26 | |||
Max. drilling diameter (mm) | / | Φ50 | ||
Plate thickness (mm) | Punching | 5～25 (Q235) | ||
Drilling | 40 | |||
Punching force (kN) | 1000 | |||
Marking force (kN) | 800 | |||
Min. distance between hole and plate edge (mm) | Punching | 25 | ||
Drilling | Depends on hole diameter | |||
Character size(mm) | 14×10×19 | |||
No. of character | 12 | |||
Die-stations | 3 | 4 | ||
Feeding speed of drilling(mm/min) | / | 25~280 | ||
Stroke of drilling spindle(mm) | / | 180 | ||
Rotation speed of drilling spindle(r/min) | / | 120~560 | ||
Precision | Accordance with GB2694 | |||
Programming mode | Input by keyboard, RS232 interface and USB interface | |||
Overall dimensions L×W×H (mm) | 3200×3000×1900 | 3200×3000×2600 | ||
Machine weight (kg) | About 5400 | About 5800 | ||
