2019-10-10

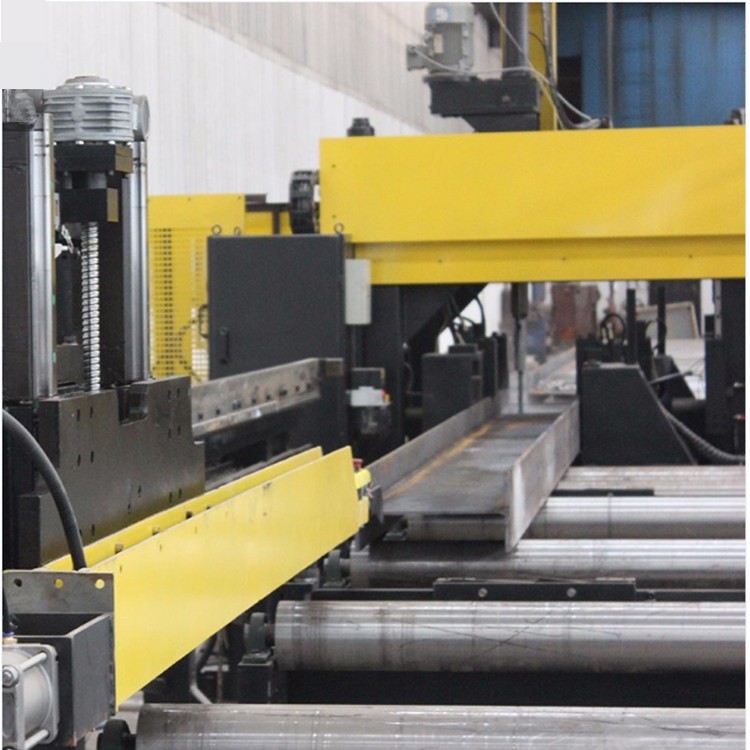

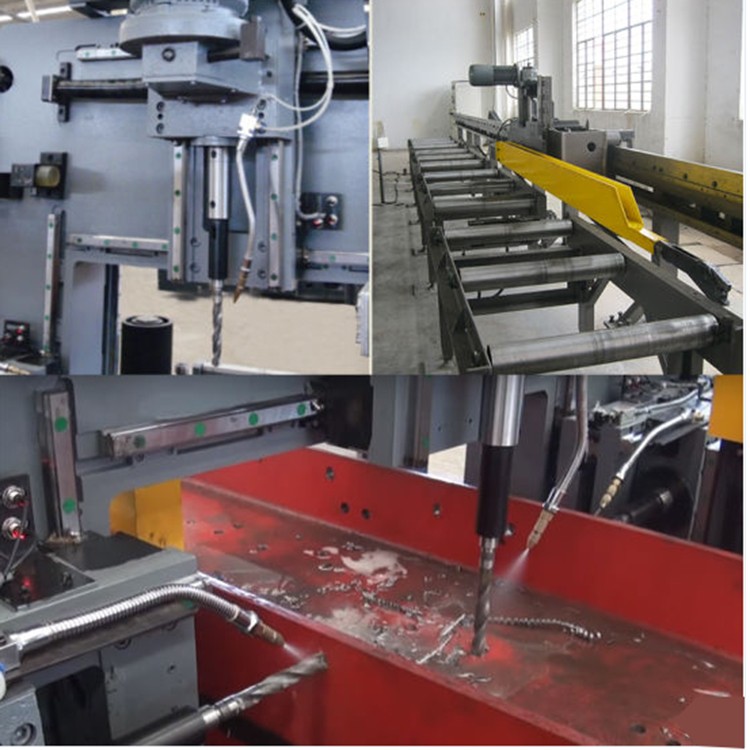

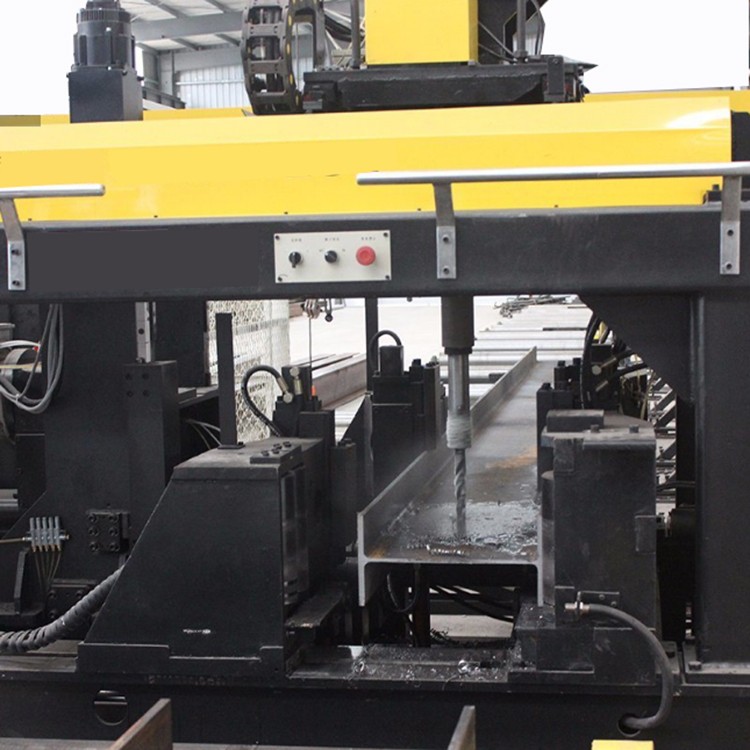

CNC H Beam Drilling Machine Line for Steel Structure Fabrication
Applicable industry:
Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and throughput (tons-per-month) in today’s extremely competitive market.
Specifications:
Model | SWZ1000 | SWZ1250 | ||||
Work piece size | H-beams Max. (web width×flange height) (mm) | Max. | 1000x500 | 1250x600 | ||
Min. | 150x75 | 150x75 | ||||
Min. Length (mm) | 2000 | |||||
Thickness of web & flange (mm) | 80 | |||||
Drilling dia. (mm) | Vertical drilling | Φ12~Φ40 | ||||
Horizontal drilling | Φ12~Φ40 | |||||
Marking function | No. of Characters | 36 characters | ||||
Characters Size | Φ10 mm | |||||
Imprinting Depth | 0.8mm~ 1.5mm | |||||

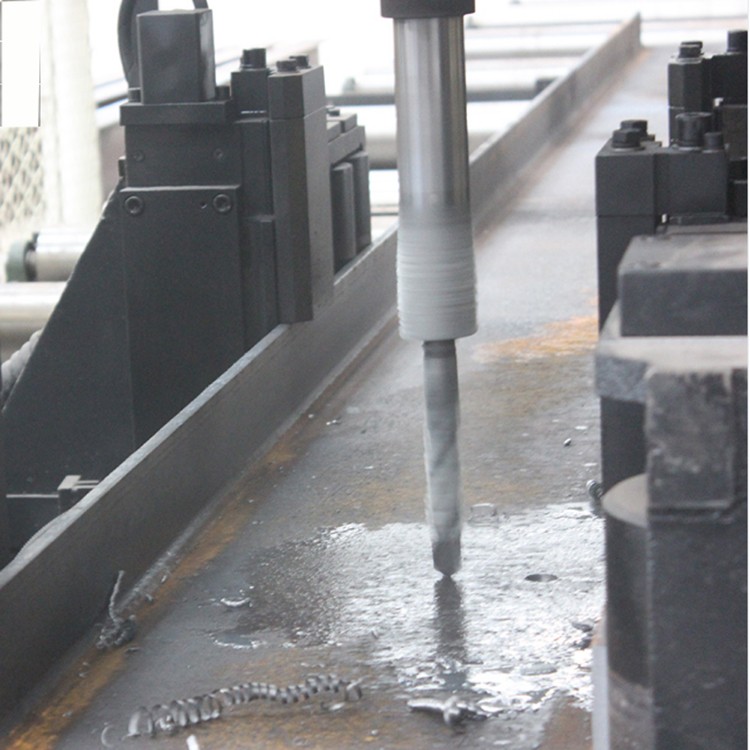

Drilling spindles | No. of spindle | One spindle on each of three sides (top,left,right) Total: 3 spindles | ||||
Rotation speed (stepless speed adjustment) (rpm) | 180~650 | |||||
Spindle motor power (kW) | 3 x 4 kW | |||||
Max. feeding stroke (mm) | (Left & right):140 (Vertical): 325 | |||||
Feeding speed(mm/min) | 20~300 | |||||
Movement of left/right spindle (mm) | In the direction of workpiece length:520 | |||||
Above vertical base-level:30~470 | Above vertical base-level:30~570 | |||||
Movement of top spindle (mm) | In the direction of workpiece length:520 | |||||
Beyond horizontal base-level: 45~910 | Beyond horizontal base-level: 45~1160 | |||||
Drilling head cooling way | Compressed air + atomized drilling fluid | |||||
Processing precision (mm) | allowance of neighbor holes distance in one hole group | ≤ ±0.5 | ||||
In length of 10m, allowance of any holes distance | ≤ ±1 | |||||
Overall dimensions (L×W×H) (mm) | 4450x3050x3520 | 4800x3050x3520 | ||||
Total power (kW) | 28 | 34 | ||||
Machine weight (kg) | About 7000 | About 8000 | ||||
