CNC Angle Punching, Marking and Shearing Machine
CNC Angle Processing Machine
Angle size: 40x40x3~200x200x20mm
Max. Hole size: 26mm
High Speed CNC Plate Drilling Machine
It is mainly used in steel structure drilling in construction, bridge, tower etc., and can be use din pipe and plate of boiler, petro line, baffle plate and round flange.
LEARN MORE
High Speed CNC Angle Drilling and Marking Machine Line
Used for angle steel drilling & marking mainly in the field of angle steel tower industry.
LEARN MORE
CNC H Beam Drilling Machine Line
Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform. It is designed for medium size steel fabricators desiring to increase profitability and throughput (tons-per-month) in today’s extremely competitive market.
LEARN MORE
CNC Plate Punching, Marking and Drilling Machine
Used for punching, drilling and marking joint plates in the field of iron tower. It is also used to punching, drilling and marking metal plate in other industry field.
LEARN MORECNC Angle Line - Export the CNC Angle Punching, Marking and Cutting Machine Line before Chinese Spring Festival
2020-01-18

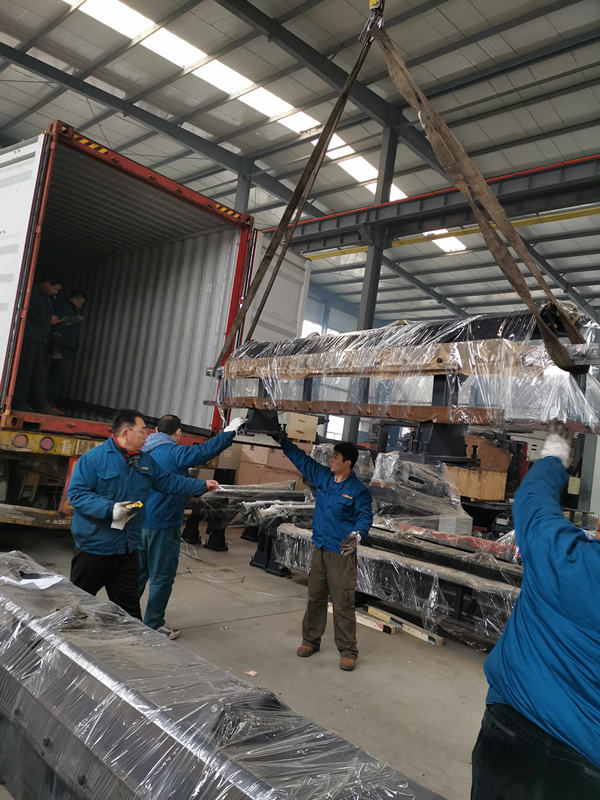

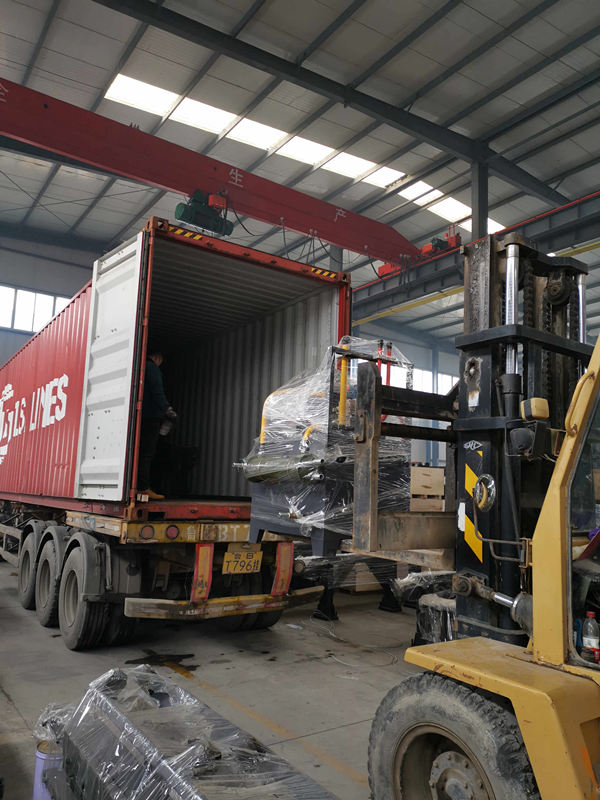

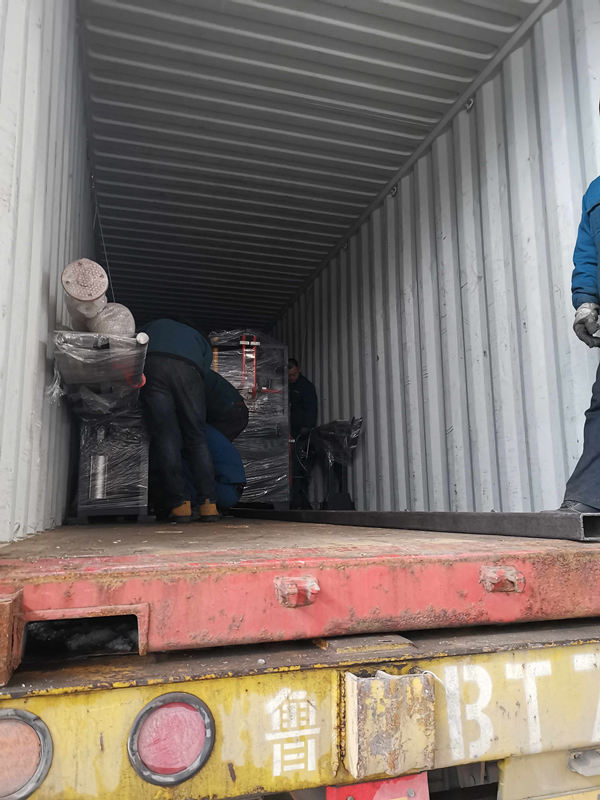

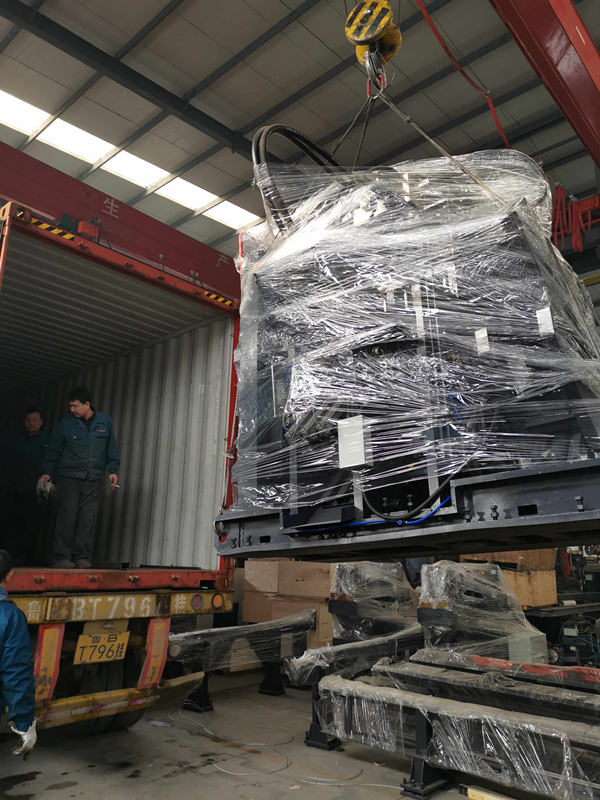

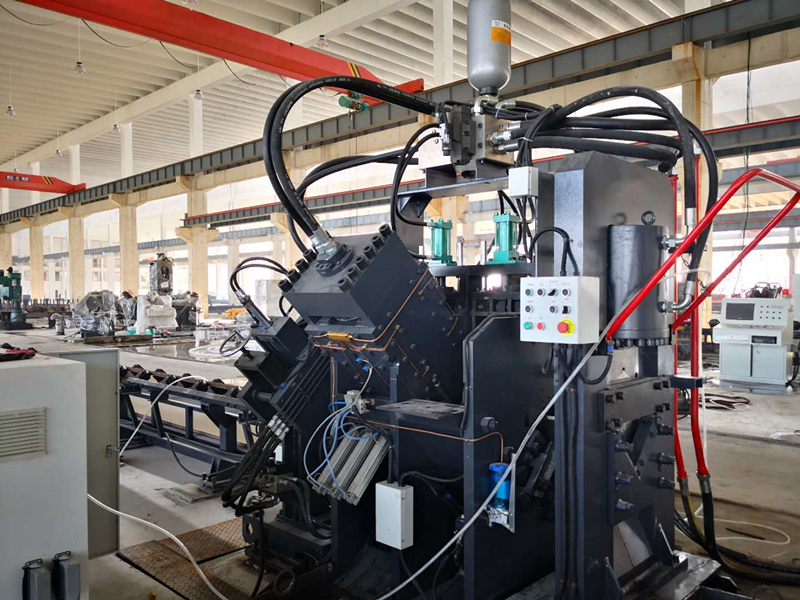

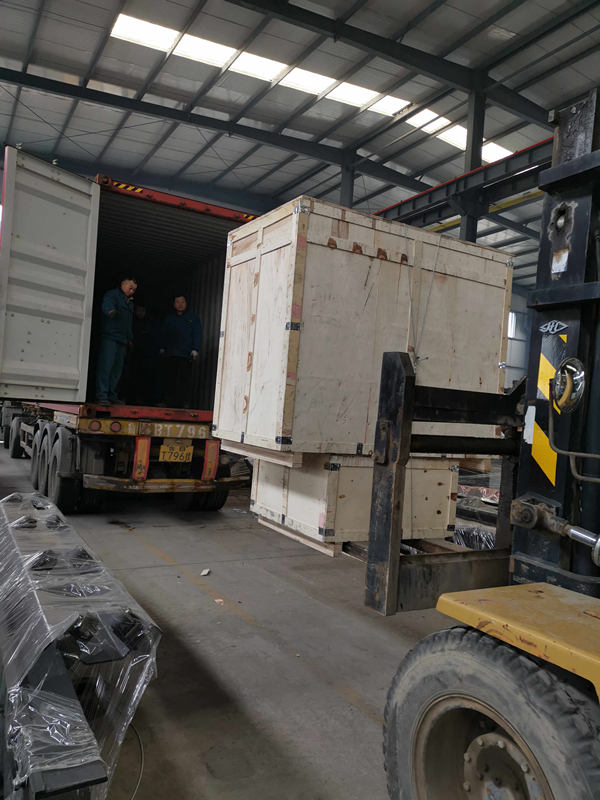

Export the CNC Angle Punching, Marking and Cutting Machine Line before Chinese Spring Festival
Applicable Industry:
This machine is used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry, electric power fittings, structure storage facilities, and steel structure construction industries etc.
Specification:
Model | JNC1010 | JNC1412 | JNC2020 |
Angle size (mm) | 40х40х3~ | 40х40х3~ | 50х50х4~ |
Max. Punching (Dia. х Thi.) (mm) | Φ26х10 | Φ26х12 | Φ26х20 |
Punching force (kN) | 630 | 630/1000 | 1000/1200 |
Marking force (kN) | 630 | 630/900/1200 | |
Cutting force (kN) | 1000 | 900/1800 | 1540/4300 |
Max. length of blank (m) | 12 | 12 | 14 |
Max.length of finished (m) | 10 | 12 | 14 |
Punches per side | 2 | 2 or 3 | 3 |
Group of marking letters | 4 | 4 | 4 |
Number of letters per group | 12 | ||
Character size(mm) | 14x10x19 | ||
CNC axes | 3 | ||
Cutting mode | Single Blade | Double Blade or Single Blade | |
Feeding speed of angle(m/min) | 80 | 80 | 60 |
Processing precision | Accordance with GB2694 | ||
Programming mode | Input by keyboard,USB interface | ||
Overall dimension (m) | About 28x6.5x2.2 | About 29x6.5x2.2 | About 32x7x2.35 |
