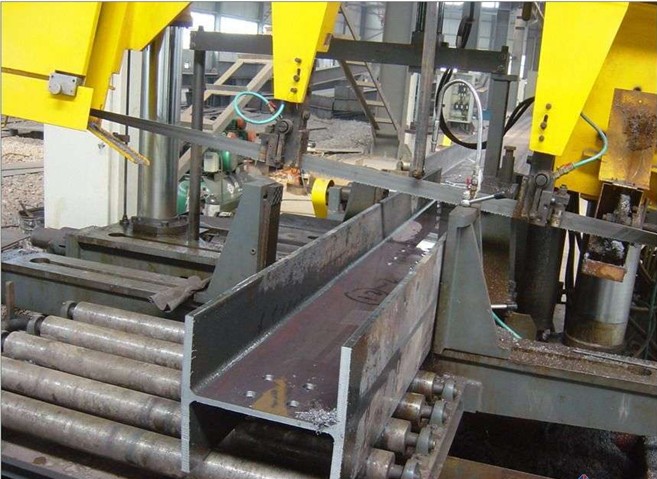

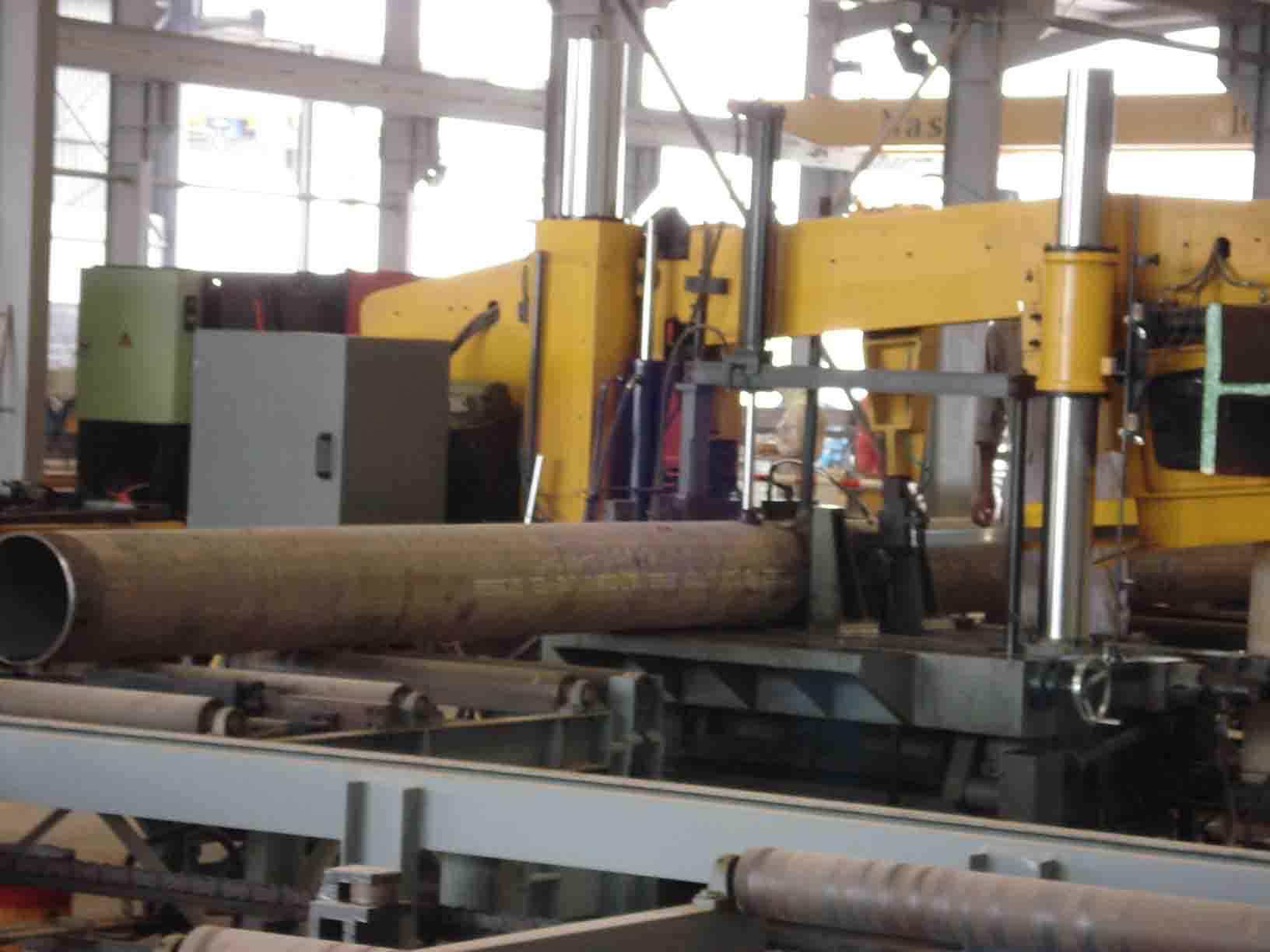

Angle Rotation CNC H Beam Band Sawing Machine for Beams and Steel Pipe
Applicable industry：
Used for the sawing of H-shape steel, box beams, channel steel, angle steel and round steel of steel structure, bridge, three dimensional garages and petrol platform industries.
Product Basic Parameter
Model | BS750 | BS1000 | BS1250 | |
Sawing force (mm) | round steel | Φ550 | φ660 | φ660 |
square steel | 480x480 | 550x550 | 630x630 | |
H beam | 750x450 | 1000x500 | 1250x600 | |
Saw blade size (mm) | T:1.3;W:41 ;L:6650 | T:1.6;W:54 ;L:7600 | T:1.6;W:54 ;L:8300 | |
Saw blade lineal speed (m/min) | 20~80 (adjustable) | |||
Motor power (kW) | 5.5 | 11 | 11 | |
Feeding speed | stepless feeding | |||
Rotation angle | 0°～ 45° | |||
Main clamping hydraulic motor (ml/r) | 160 | |||
Front clamping hydraulic motor (ml/r) | 160 | |||
Clamping type | Hydraulic clamping | |||
Overall dimension(LxWxH) | About 3.5x2.5x2.6 | About 3.8x2.6x2.6 | About 4.2x2.6x2.7 | |
Machine weight (Kg) | About 5500 | About 6000 | About 6800 | |
